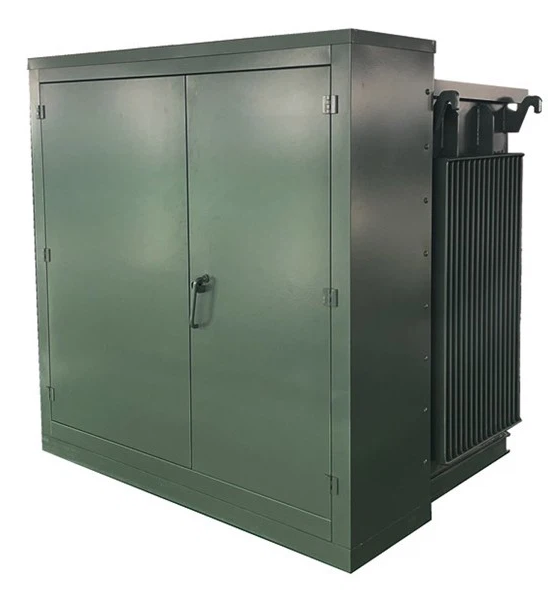

Pad Mounted Transformers
Our Pad Mounted Transformers are specifically designed for servicing underground distribution
loads, commonly used in residential and commercial areas to provide power for lighting, appliances,
and other electrical equipment, making them an excellent choice for solar projects where aesthetics
and safety are paramount.
Capacity and Design:
Power Rating: |
Up to 10 MVA |
Voltage Rating: |
Up to 44000 Volts |
Cooling Types: |
ONAN or KNAN |
Phases & Frequency: |
3 Phase / 60 Hz |
Insulating Fluid: |
Natural Ester oil, Synthetic Ester Oil, Mineral Oil as per IEC60296, ASTM D3487 |
HV Configuration: |
Loop feed / Radial feed |
Winding Material: |
Aluminum or Copper |
HV Termination: |
Dead front / Live front Bushings in ATC |
LV Connections: |
Bushings with NEMA 4-hole, 6-hole, 8-hole, 10-hole or 12-hole spades in ATC |
Installation: |
Outdoor/Indoor ground mounted |
Key Features:
Compact & Lightweight: |
Offers a compact size and lightweight design for easy installation and a smaller footprint. |
Enhanced Aesthetics & Safety: |
Designed for better aesthetics and enhanced safety with a tamper-proof construction./td>
|
Low Losses: |
Optimized for maximum efficiency and low losses. |
Environmental Safety: |
Environmentally safe design. |
Built-in Fuses & Switches: |
Features built-in fuses and switches. |
UL Certified: |
Our Pad Mounted Transformers are UL Certified for the USA under standard IEEE C57.12.00, and for Canada under standard CSA C88. |
Construction: |
An oil-filled, hermetically sealed step-down transformer with a gas cushion. |
Standard Features: |
Includes mild steel tank and cabinets, three-point latching door for security, cooling radiators, pressure vacuum gauge, valve for filling & release of pressurized gas, liquid level and temperature gauge, de-energized tap changer, automatic operated pressure release valve, manhole with bolted cover, oil drain valve with sampler, rating & diagram plate, 2-position load break switch, and welded top cover. |
Applications:
| Residential and commercial areas
| Providing power for lighting, appliances, and other electrical equipment |
| Large scale business centres |
Solar & Wind applications |
| Mining stations & Large-scale industries |
Railway Stations |
| Residential Complexes |
Data Centres |
