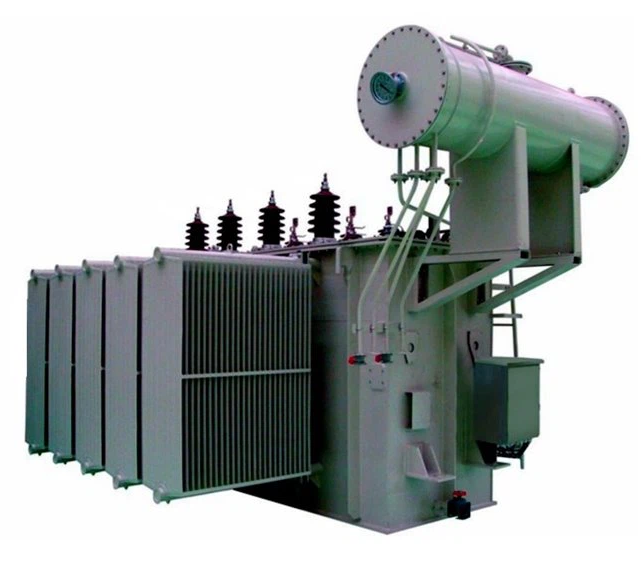

Power Distribution Transformers
Our Power Distribution Transformers are a critical component for
stepping up and stepping down voltage within the transmission network,
making them ideal for renewable solar applications and receiving
substations.
Capacity and Design:
Power Rating: |
Up to 125 MVA |
Voltage Rating: |
Up to 161 kV or any specific customer requirement. |
Cooling Types: |
ONAN, ONAN/ONAF, KNAN, KNAN/KNAF |
Phases & Frequency: |
3 Phase, 50/60 Hz |
Insulating Fluid: |
PCB-FREE Mineral Oil (both inhibited & uninhibited, as per IEC 60296, ASTM D3487), Natural Ester oil, Synthetic Ester Oil, Mineral Oil, and customer requirement. |
Winding Material: |
Aluminium or Copper |
Tap Changer: |
Available with Off-Circuit or On-Load Tap Changer. |
Installation: |
Designed for outdoor installations. |
Key Features:
Robust Construction: |
Transformer tanks are designed for safe lifting and transportation and are effectively sealed against oil leakage. |
High Dielectric Insulation: |
Features the highest dielectric insulation property to withstand lightning Designed for better aesthetics and enhanced safety with a tamper-proof construction. |
Optimised for Efficiency: |
Includes step-lap designed CRGO laminations for lower losses and excitation current. |
Enhanced Coil Quality: |
Coils undergo pre-heating under vacuum to achieve the desired compression height and utilise Perma wood clamping rings for uniform compression of primary & secondary winding. |
Thermal Management: |
Adequate ducts between layers, coils, and discs ensure maximum oil flow and reduced hot spot temperature. |
Safety Standards: |
Designed and manufactured with due care on health and safety aspects as per respective standards like IEEE, CSA, ANSI, IEC, NEMA. |
UL Certified: |
Our Power Distribution Transformers are UL Certified for the USA under standard IEEE C57.12.00, and for Canada under standard CSA C227.4. |
Applications:
| Solar & Wind applications
| Large Industries |
Mining stations & Power plants |
| Onshore & Offshore platforms
| Receiving stations |
Data centres |
