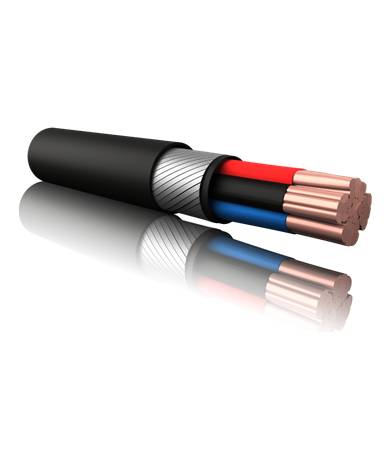

BS 5467-2016 - Power Cable

Technical Information

• –Voltage Rating : 0.6/1kV
• –Temperature Rating : 90°C to 250°C

Construction/Material

• – Conductor : Plain annealed Stranded Copper Class 2 to BS EN 60228
• – Insulation : XLPE (GP 8) as per BS 7655: Section 1.3
• – Bedding : Extruded polymeric material as per clause 9 of BS 5467:2016
• – Armour : Galvanised Steel Round wire
• – Sheath : Extruded PVC Type 9 as per BS 7655: Section 4.2

Product Range

• –2C-4C 1.5 to 400 sq.mm
• –5C - 1.5mm2 to 70 mm2
• –7C to 37 C - 1.5 mm2 to 4 mm2

Standard Reference

• –BS 5467, BS EN/IEC 60502-1
• –Flame Retardant according to BS EN/IEC 60332-1-2
