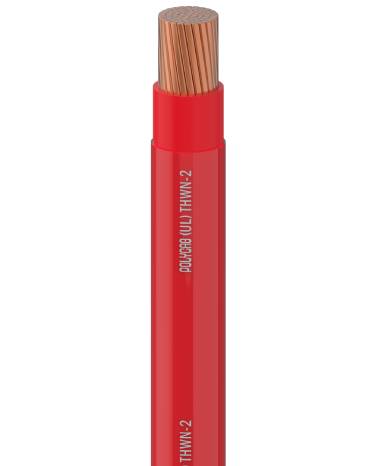

UL 83 – Thermoplastic Insulated Wires & Cables (THHN)

• – Intended for use in conduit and cable trays for services, feeders and branch circuits for use in residential, commercial and industrial applications in accordance with the National Electrical Code (NEC). Type THHN/THWN-2 conductors are approved for use at a maximum voltage of 600 volts and a maximum conductor temperature of 90 °C in wet or dry locations and 60 °C when exposed to gasoline and oil. Use of lubrication for installations in raceways is not mandatory

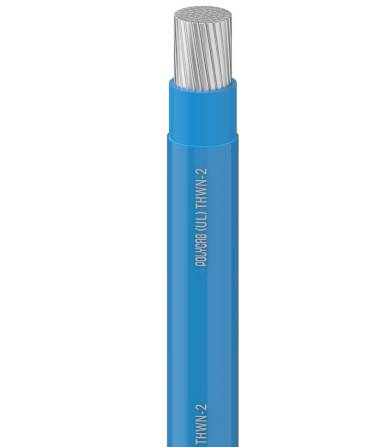

• – 600 V THERMOPLASTIC INSULATED ALUMINUM THHN/THWN-2

Technical Information

• – Voltage Range : 600 V
• – Temperature Range : -40°C to 90°C

Construction/Material

• – Conductor : Annealed Bare Copper & Aluminium Alloy 8000 Series
• – Insulation : PVC 90degC
• – Jacket : Nylon-6

Product Range

• – 8 AWG to 1000 MCM

Standard Reference

• – UL 83 - ASTM B3
• – UL 1581 - ASTM B8
• – UL 2556 - ASTM B787
• – NFPA 70 (National Electrical Code)
• – CSA C22.2 No. B 75-14
