BS EN 50525-3-41-2011

Application

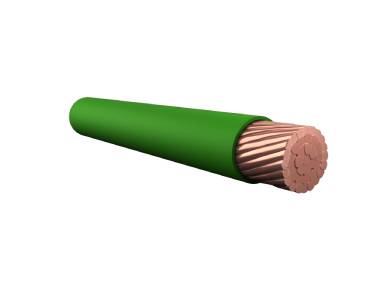

  • POLYCAB H07Z-R BS EN 50525-3-41 SC stranded copper conductor insulated with halogen free cross-linked compound with low smoke emission and corrosive gases when exposed to fire condition, fulfils the requirement of BS EN 50525-3-41. This Cable is intended to use for fixed wiring application in electric panels and switch boards.

Voltage Rating

  • – 450/750 V

Operation Temperature

  • – Fixed: 0°C to 90°C

Construction

  • – Annealed stranded copper conductor as per IEC 60228, class 2
  • – Insulated with halogen free cross linked polyolefin Type EI 5 to EN 50363-5

Core Identification

  • – As per BS EN 50525 -1 Cl. 5.4.2b

Bending Radius

  • – Fixed installation – 8 x Overall Dia. Standard and References
  • – IEC 60228
  • – BS EN 50363-5
  • – BS EN 50525-3-41
  • – IEC 60332-1-2
