UL 2250 – Instrumentation Tray Cable

• – This category covers Type ITC instrumentation tray cable for use only in industrial establishments in accordance with Article 727 of NFPA 70, "National Electrical Code" (NEC). The cable consists of two or more insulated copper or thermocouple alloy conductors enclosed within a non-metallic jacket. The cable may have a metal sheath or Armor over the non-metallic jacket, and may contain grounding conductors. The cable is rated 300 V and is intended for use on circuits rated 150 V or less and 5 A or less. The cable is certified in conductor sizes 22 to 12 AWG. Conductor sizes within a cable may be mixed.

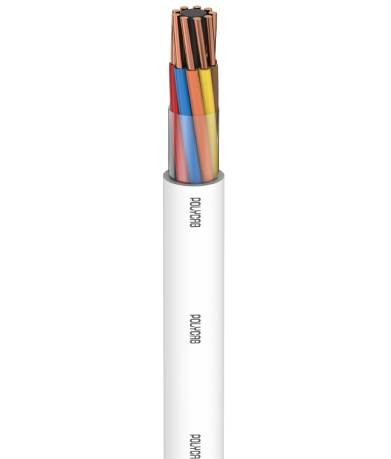

• – TC Cable – THHN/XHHW-2 type Insulated & PVC Jacketed

Technical Information

• – Voltage Range : 600 V
• – Temperature Range : -40°C to 90°C

Construction/Material

• – Conductor : Annealed Bare Copper
• – Insulation : PVC/XLPE 90degC
• – Binder Tape : Polyester & Al Myler
• – Jacket : PVC 90degC

Product Range

• – 18 AWG to 1000 MCM

Standard Reference

• – UL 1277 & UL 2550
