UL 4703 (Photovoltaic cable)

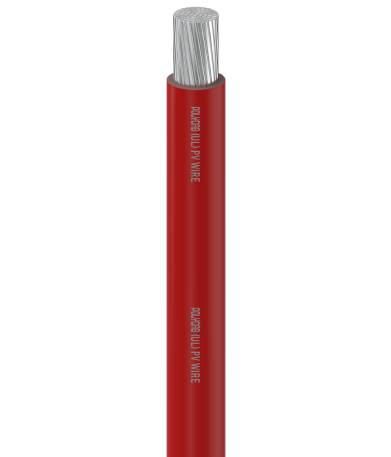

• – This is a single-conductor, integrally jacketed, sunlight resistant, photovoltaic wire rated 90 C wet or dry, rated 600, 1000 or 2000 V suitable for ac and dc systems for interconnection wiring of grounded and ungrounded photovoltaic power systems described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70. The wire is constructed in accordance with the latest Standard for Photovoltaic Wire, UL 4703
• – RHW-2 – XLPO Insulated

Technical Information

• – Voltage Range : 2000 V
• – Temperature Range : 40°C to 90°C

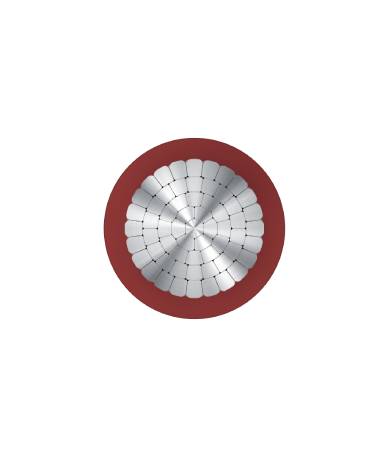

Construction/Material

• – Conductor : Annealed Bare Copper & Aluminium Alloy 8000 Series
• – Insulation : XLPO 90degC

Product Range

• – 18 AWG to 1000 MCM

Standard Reference

• – UL 4703
