BS EN 50618-2014

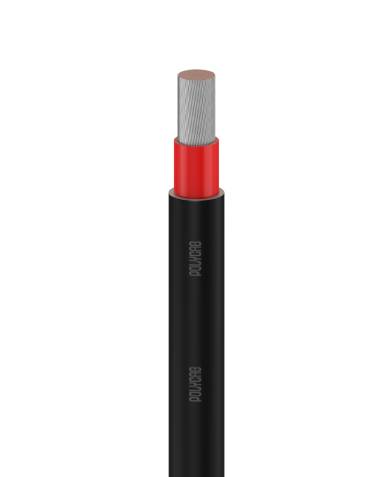

  • 1.5 kV DC Flexible Tinned Copper conductor/ E-Beam cross linked XLPO insulation/ E-Beam cross linked XLPO sheathed Solar cable as per BS EN 50618-2014 (H1Z2Z2-K)

Voltage Rating

  • – Nominal Voltage: 1 kV

Operation Temperature

  • – Max. operating temperature: +90°C
  • – Max. Short Circuit Temperature: 250°C

Construction

  • – Conductor: Annealed Tinned Flexible copper conductor as per Class 5 of EN 60228
  • – Insulation: E beam XLPO Compound (Polyolefin Type) as per Annexure B Table B.1 of BS EN 50618• Non-Metallic Insulation Screen: Extruded Semi-conductive compound
  • – Outer Sheath : E beam XLPO Compound (Polyolefin Type) as per Annexure B Table B.1 of BS EN 50618

Standard and References

  • – BS EN 50618
  • – FFlame retardant according to IEC 60332-1-2
  • – Halogen free according to EN 50267-2-2
  • – Ozone resistant according EN 50396
  • – Weather/UV resistant according to DIN 53387
