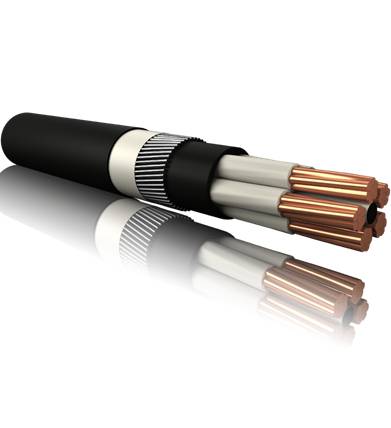

BS 5467-2016 - Power Cable

Technical Information

  • – Voltage Rating : 0.6/1kV
  • – Temperature Rating : 90°C to 250°C

Construction/Material

  • – Conductor : Plain annealed Stranded Copper Class 2 to BS EN 60228
  • – Insulation : XLPE (GP 8) as per BS 7655: Section 1.3
  • – Bedding : Extruded polymeric material as per clause 9 of BS 6724:2016
  • – Armour : Aluminium round wire
  • – Sheath : Extruded polymeric material Type LTS 1 as per BS 7655: Section 6.1

Product Range

  • – 1C : 50 mm2 to 1000 mm2
  • – 2C to 4C : 1.5 mm2 to 400 mm2
  • – 5C : 1.5 mm2 to 70 mm2
  • – 7C -37C : 1.5 mm2 to 4 mm2

Standard Reference

  • – BS 6724, BS EN/IEC 60502-1, BS EN/IEC 60228

Printing

  • – POLYCAB BASEC ELECTRIC CABLE 600/1000 V BS 6724 CABLE SIZE YEAR H CE marking with sequential meter marking
