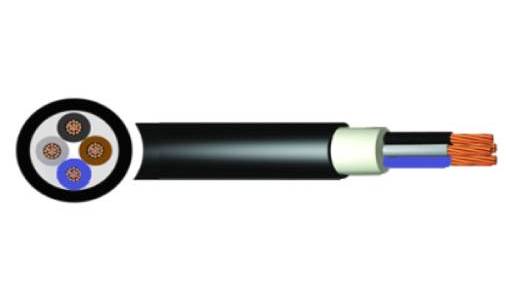

6182B/6183B/6184B/6185B BS 7211 MC

Application

  • POLYCAB 6182B/6183B/6184B/6185B BS 7211 MC cable with thermosetting insulation and halogen free material sheathed fulfils the requirement as per BS 7211. These cables produce lower level of smoke and corrosive gases under exposure to fore compared PVC insulated cable and can be used for lighting and domestic appliances.

Voltage Rating

  • – 450/750 V

Operation Temperature

  • – Max. Operating: 90°C

Construction

  • – Annealed solid or stranded copper conductor as per IEC 60228, class 1 or class 2
  • – Insulated with Cross linked compound Type GP 8 or EI 5 confirming to BS 7655-1.3/EN 50363-5
  • – Extruded inner covering of synthetic polymeric material
  • – Sheathed with halogen free material type LTS4 confirming to BS 7655-6.1

Core Identification

  • – 2-core Brown and blue
  • – 3-core Brown, black and grey
  • – 4-core Blue, brown, black and grey
  • – 5-core Green/yellow, blue, brown, black and grey

Standard and References

  • – IEC 60228
  • – BS 7655-1.3/EN 50363-5
  • – BS 7655-6.1
  • – BS 7211:1998
