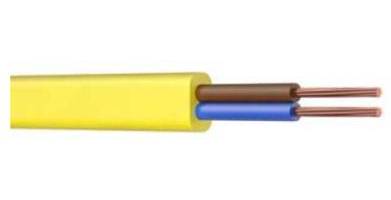

6192Y/6193Y BS 6004 MC

Application

  • POLYCAB 6192Y/6193Y BS 6004 MC stranded copper conductor PVC insulated and PVC sheathed cable confirm the requirement as per BS 6004. These cables are intended to use for electric power and lighting application.

Voltage Rating

  • – 300/500 V

Operation Temperature

  • – Fixed : -15° C + 70° C
  • – Max. short circuit temp. 160°C

Construction

  • – Annealed stranded or solid copper conductor as per EN 60228, class 2 or Class 1
  • – Insulated with PVC Type TI 1 to EN 50363-3
  • – Sheathed with PVC Type 6 to BS 7655-4.2

Core Identification

  • – Twin core Brown and Blue or 2 x 1 & 2 x 1.5 cables, Brown and Brown with number printing.
  • – Three core Brown, Black (Centre core) and Grey

Bending Radius

  • – Fixed installation > 8 x Overall Diameter
  • – Occasional > 6 x Overall Diameter

Standard and References

  • – IEC 60228
  • – EN 50363-3
  • – BS 7655-4.2
  • – BS 6004:2000
