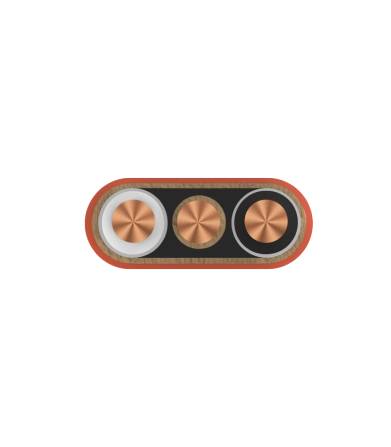

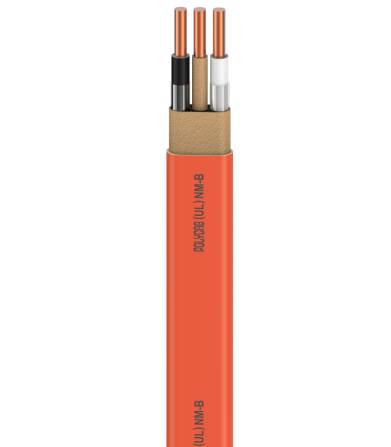

UL 719 – Non-metallic Sheathed Cable

  • – Type NM-B (Non-metallic sheathed cable) has a broad range of usage as defined in Article 334 of the National Electrical Code (NEC). Type NM-B cable is commonly used for residential wiring of luminaries, devices and appliances. Type NM-B ampacity limitation shall be in accordance with the 60⁰C conductor temperature rating, as specified in the NEC. Type NM-B is rated 600-volt for both exposed and concealed work in normally dry locations. Type NM-B may be installed or fished in air voids and joints and in masonry block or tile walls where such walls are not exposed to, nor subject to, excessive moisture or dampness
  • – NMB – PVC Insulated/PVC Jacketed

Technical Information

  • – Voltage Range : 600 V
  • – Temperature Range : -40°C to 90°C


  • – Conductor : Annealed Bare Copper
  • – Insulation : PVC 90degC
  • – Paper Tape : Kraft paper tape
  • – Jacket : Nylon-6

Product Range

  • – 14 AWG to 2 AWG

Standard Reference

  • – UL 719
