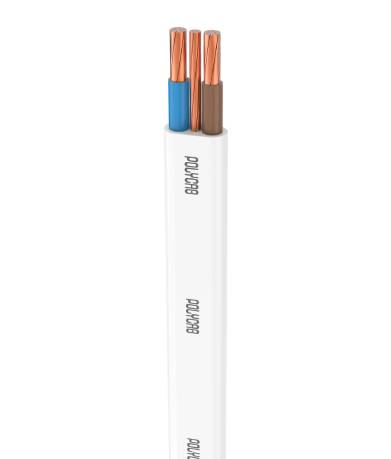

6241Y/6242Y/6243Y BS 6004 MC

Application

  • POLYCAB 6241B/6242B/6243B BS 7211 MC stranded copper conductor thermosetting material insulated and halogen free material sheathed with CPC (Circuit protective conductor) fulfils the requirement as per BS 7211. These cables produce lower level of smoke and corrosive gases under exposure to fore compared PVC insulated cable and can be used for lighting and domestic appliances.

Voltage Rating

  • – 300/500 V

Operation Temperature

  • – Max.: 90°C

Construction

  • – Annealed solid or stranded copper conductor as per IEC 60228, class 1 or class 2
  • – Insulated with Cross linked compound type GP8 or EI 5 confirming to BS 7655-1.3/BS EN 50363-5
  • – Bare circuit protective conductor
  • – Sheathed with Halogen free material Type LTS4 confirming to BS 7655-6.1

Core Identification

  • – Single core Brown or Blue
  • – 2 core Brown and Blue or 2 x 1 & 2 x 1.5 cables, Brown and Brown
  • – 3 core Brown, Black (Centre core), Grey

Position of CPC

  • – 2 core Circuit protective conductor (CPC) placed in between cores in same plane
  • – 3 core Circuit protective conductor (CPC) Centrally placed with black and grey cores in same plane

Bending Radius

  • – Fixed installation – 3 x Overall Diameter

Standard and References

  • – IEC 60228
  • – BS 7655-1.3/BS EN 50363-5
  • – BS 7655-6.1
  • – BS 7211:1998
