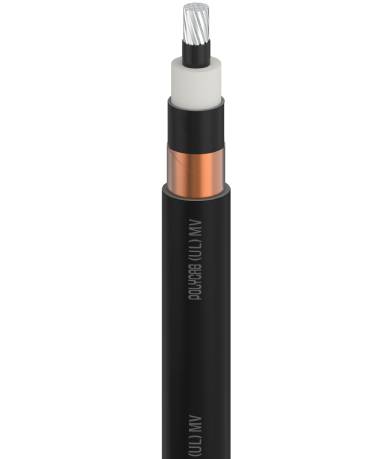

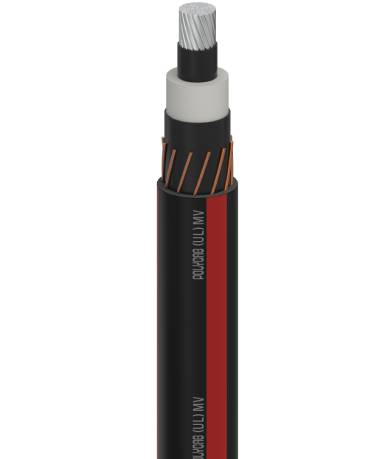

MV-90 & MV-105 – XLPE/LLPDE - (UL 1072)

• – URD – TR XLPE insulated cables are designed and manufactured to meet the applications of primary power and underground distribution circuits in industrial and commercial installations, power circuits in generating plants. They are suitable for use in wet or dry locations, installed in any raceway, open air, aerial messenger supported, direct burial, underground duct, cable tray and exposed to sunlight, to be used at 5kV up to 35kV at conductor temperatures not to exceed rated 90 Deg C or 105 Deg C for normal operation.
• – MV-90 & MV-105 – XLPE or EPR Insulated / PVC / TRXLPE / LLDPE Sheathed

Technical Information

• – Voltage Range : 35kV & 11kV
• – Temperature Range : -40°C to 90°C

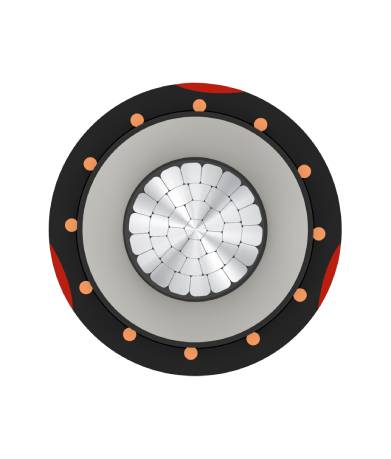

Construction/Material

• – Conductor : Annealed Bare Copper & Water Block Aluminium/Copper
• – Insulation : XLPE or EPR- 90/105degC
• – Jacket : PVC

Product Range

• – 8 AWG to 2000 MCM

Standard Reference

• – UL 1072
