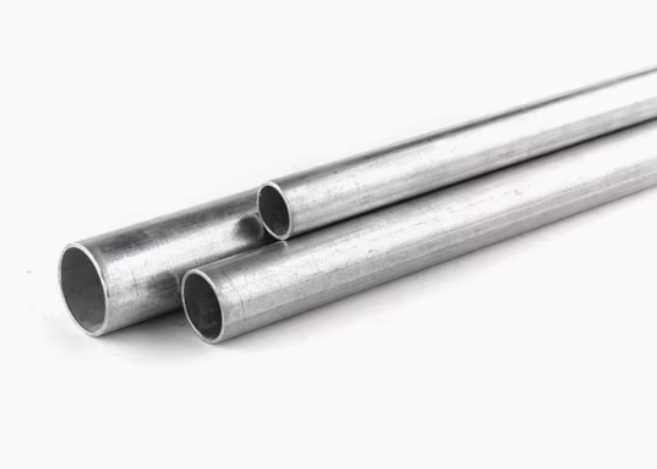

Electrical Metallic Tubing (EMT)
Description
Your Trusted Partner for Quality EMT Solutions
MASS WIRE & CABLE COMPANY has established itself as a leading intermediary for top-quality electrical products, specialising in Electrical Metallic Tubing (EMT). Our products meet national and international standards, ensuring the highest levels of safety and durability. We proudly serve various industries, from government organisations to private sector giants, both in India and abroad.
Why Choose EMT from MASS WIRE & CABLE COMPANY?
Our EMT (Electrical Metallic Tubing) solutions offer unparalleled protection for electrical wiring in both commercial and industrial environments. Designed for strength, durability, and flexibility, our EMT is lightweight and easy to install, providing a cost-effective alternative for secure electrical installations.
Electrical Metallic Tubing (EMT)
Material
- – Made from high-quality mild steel roll coils.
Protection
- – Exterior and interior are protected by a superior quality zinc coating through the hot-dipped galvanising process. An additional clear anti-corrosion coating is applied for higher protection against corrosion.
- – The inner surface is coated with organic lacquer and epoxy resin, providing excellent resistance to rust, corrosion, scratches, and pulling.
Surface Finish
- – The inner surface has a smooth finish due to the epoxy resin coating.
Installation
- – Easy to install due to the smooth internal surface.
Standards
- – Meets the American National Standard for electrical rigid conduit ANSI – C80.3 (UL 797)
Certifications & Compliance
- – ANSI – C80.3 (UL 797)
EMT (Electrical Metallic Tubing)
| Trade Size | Metric | Outside Diameter | Nominal Wall Thickness | Approx. Weight/100ft | |||
|---|---|---|---|---|---|---|---|
| in | mm | in | mm | lb | kg | ||
| 1/2" | 16.0 | 0.706 | 17.93 | 0.042 | 1.07 | 30 | 13.6 |
| 3/4" | 21.0 | 0.922 | 23.42 | 0.049 | 1.24 | 46 | 20.9 |
| 1" | 27.0 | 1.163 | 29.54 | 0.057 | 1.45 | 67 | 30.4 |
| 1 1/4" | 35.0 | 1.51 | 38.35 | 0.065 | 1.65 | 101 | 45.8 |
| 1 1/2" | 41 | 1.740 | 44.20 | 0.065 | 1.65 | 116 | 52.60 |
| 2" | 53 | 2.197 | 55.80 | 0.065 | 1.65 | 148 | 67.10 |
| 2 1/2" | 63 | 2.875 | 73.03 | 0.072 | 1.83 | 216 | 98.00 |
| 3" | 78 | 3.500 | 88.90 | 0.072 | 1.83 | 263 | 119.30 |
| 3 1/2" | 91 | 4.000 | 101.60 | 0.083 | 2.11 | 349 | 158.30 |
| 4" | 103 | 4.500 | 114.30 | 0.083 | 2.11 | 393 | 178.30 |
Applications of EMT
- – Ideal for electrical installations in office buildings, shopping complexes, and residential towers.
- – Used extensively in manufacturing units, power plants, and other heavy-duty applications where robust electrical protection is needed.
- – Perfect for metro projects, airports, and railway stations, ensuring safe electrical pathways.
- – Provides reliable protection for the complex electrical systems in data centres, ensuring consistent uptime and preventing hazards.
- – Used in critical government infrastructure like hospitals, defence installations, and research labs.
- – Suitable for chemical plants, thermal power stations, and coastal regions due to its high corrosion resistance.
